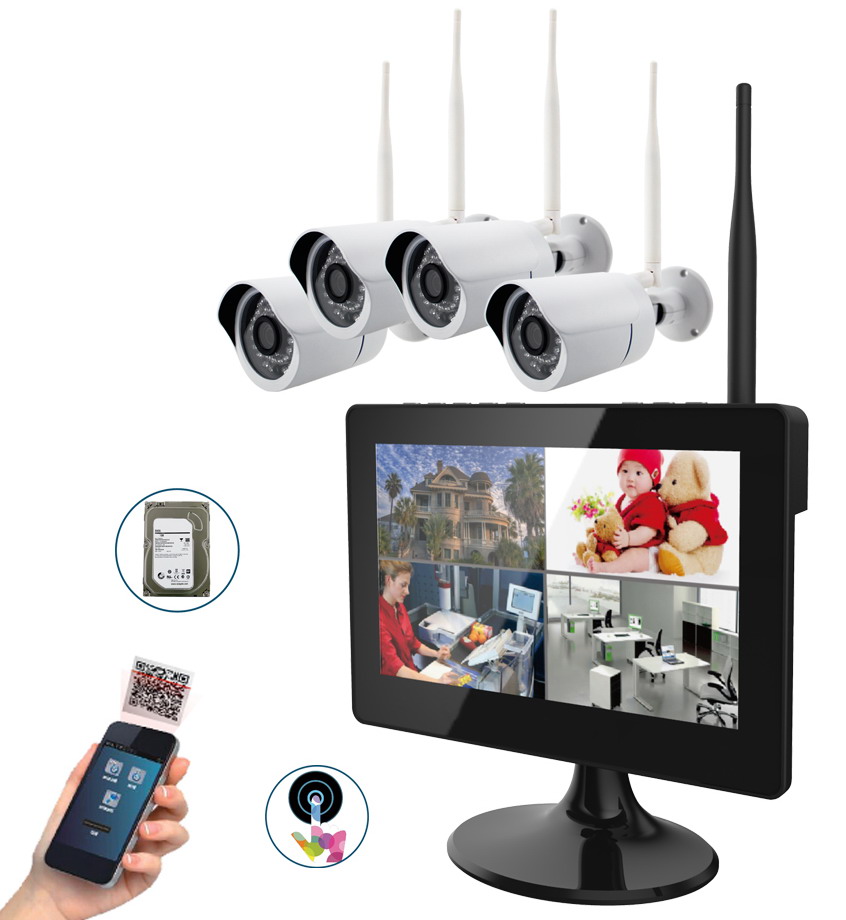

9"Touch Screen 720P wireless digital surveillance system
9"Touch Screen，4ch realtime 720P Digital Wireless camera system , Built-in HDD slot (supports 2TB HDD max Recording), Supports Smartphone P2P Live View , 9〞TFT-LCD Panel Resolution1024×600（HD）,Wireless Range up to 300 Meters
|
System Model
|
KW16N4-L09
|
||
|
2.4G Wireless NVR (KW16N4-L09)
|
|||
|
Items
|
Parameters
|
Values
|
|
|
LCD Panel
|
Screen type
|
9〞TFT-LCD
|
|
|
Display Area
|
196.61×114.15mm
|
||
|
Resolution
|
1024(H)×RGB×600(V)
|
||
|
Main processor
|
ARM9EJ-S
|
||
|
Operating system
|
RTOS
|
||
|
Video
|
Video compression
|
H.264
|
|
|
Video input mode(IP)
|
4*720P
|
||
|
Video Outputs
|
HDMI, Analog Video
|
||
|
Display Resolution
|
Max. 720p HD
|
||
|
Audio
|
Audio compression
|
Audio32
|
|
|
Intercom
|
Option
|
||
|
Recording
|
Recording Modes
|
Manual, Scheduled, Motion Trigger
|
|
|
Recording Resolution
|
720p HD (4 Channels)
|
||
|
Recording Frame Rate
|
Max. 25fps / 30fps
|
||
|
Loop Recording
|
Yes
|
||
|
Hard Drive
|
Max. Supported 2TB
|
||
|
Connections
|
Network Apps
|
iSecurityCam (iOS & Android)
|
|
|
Ac Type
|
Google, Facebook, Wechat, QQ
|
||
|
Network Access Mode
|
Local, P2P,
|
||
|
Event Push to Smartphone
|
Yes
|
||
|
Yes
|
|||
|
External Interface
|
Network Interface
|
RJ45 LAN Port x 1
|
|
|
HDMI Output
|
HDMI Port x 1
|
||
|
AV Output
|
None
|
||
|
SD Card video files export
|
32GB (AVI Format)
|
||
|
USB Port
|
yes
|
||
|
External Controller
|
Panel Key
|
yes
|
|
|
IR Remote
|
Yes
|
||
|
Touch Key
|
Option
|
||
|
Yes
|
|||
|
General
|
Power Supply
|
DC12V/2A
|
|
|
Working Environment
|
0~+55℃ / 10~90%RH / 86~106kpa
|
||
|
Dimension
|
|
||
|
Weight
|
|
||
|
2.4G Wireless Camera (CNB604W)
|
|||
|
Items
|
Parameters
|
Values
|
|
|
Sensor and lens
|
Image Sensor
|
1/4” OV9712 1Megapixel progressive scan CMOS
|
|
|
Focal Length
|
3.6mm
|
||
|
Video
|
Video Quality
|
1280（H）X 720(V)
|
|
|
Viewing Angle
|
70° (Diagonal)
|
||
|
Night Vision
|
IR LED
|
32 pcs, 850nm
|
|
|
Night Vision Distance
|
20-30 meters
|
||
|
IR Cut Filter
|
Yes
|
||
|
General
|
Power Supply
|
DC 5V/2A
|
|
|
Working Environment
|
-10~+60℃ /Less than 95% RH
|
||
|
waterproof
|
IP66
|
||
|
Dimension
|
Ø67mm×168mm
|
||
|
Weight
|
|||
